Ethernet Switch 8 Port 10/100/1000T To 2 Port 100/1000X SFP Din Rail Gigabit Managed Switch

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-IMC208SG-SFP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pcs/per month

Delivery Time : 7 working days

Packaging Details : Managed Ethernet Switch Standard Export Package

Keywords : industrial 8 port managed switch

Mounting Options : DIN-Rail mount

Fiber Port : 2-Port 100/1000Base-X SFP

RJ45 Port : 8-Port 10/100/1000T RJ45

Input Power : 12~48VDC

Weight : 300g

Contact Now

Industrial Managed Ethernet Switch 8 Port 10/100/1000T To 2-Port 100/1000X SFP Fiber

Managed Switch 8 Port Advantages
►8x10/100/1000Base-TX + 2x100/1000Base-X SFP
►10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
►Supports WEB Management
►Support IEEE 802.3D/W/S standard STP/RSTP protocol
►IEEE 802.3az Energy Efficient Ethernet (EEE)

8 Port Managed Switch Technical Indexes

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

Connector:

8 x RJ45

Optical Port:

2 x 100/1000Base-X SFP

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Input Power:

12~48VDC, Redundant Power (4-pin Terminal Block)

Power Consumption:

5W Max.

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

Fiber:

Gigabit SFP Port: F9~F10

Dimensions (WxDxH):

95 x 88 x 46 mm

Weight:

300g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount


Din Rail Managed Switch Overview

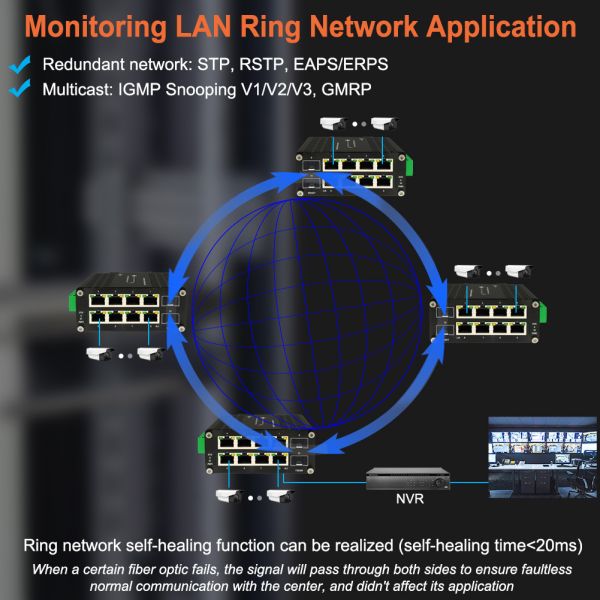

LNK-IMC208SG-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ethernet Switch 8 Port 10/100/1000T To 2 Port 100/1000X SFP Din Rail Gigabit Managed Switch
Ethernet Switch 8 Port 10/100/1000T To 2 Port 100/1000X SFP Din Rail Gigabit Managed Switch
Industrial ManagedSwitch With 8 port RJ45 Ordering Information

Model

Description

LNK-IMC208SG-SFP

Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
