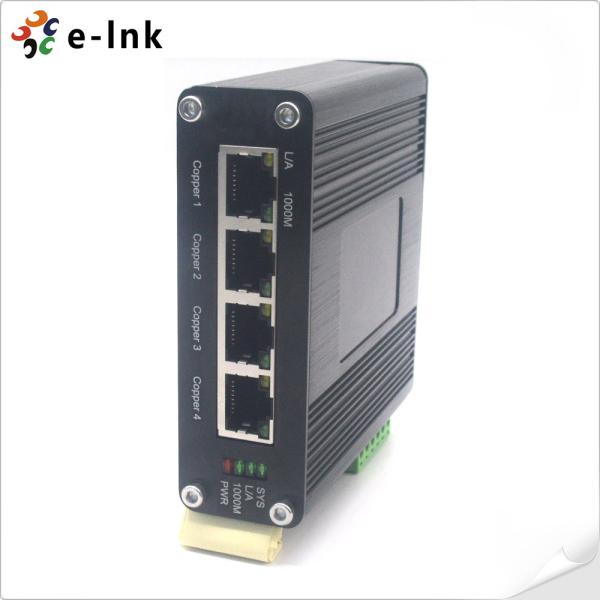

Aluminum Case Ethernet Switch 4 Port 10/100/1000Base-T + 1-Port 100/1000Base-X SFP AC Power Input Wall Mount

Name: Aluminum Case Ethernet Switch 4 Port 101001000BaseT 1Port 1001000BaseX SFP AC Power Input Wall Mount
Brand: E-link
Price: 1 USD

Wholesale Aluminum Case Ethernet Switch 4 Port 10/100/1000Base-T + 1-Port 100/1000Base-X SFP AC Power Input Wall Mount from china suppliers

Brand Name : E-link

Model Number : LNK-IMC-A1400G-SFP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pcs/per month

Delivery Time : 7 working days

Packaging Details : 4-Port Ethernet Switch Standard Export Package

Product Name : 4-Port Industrial Ethernet Switch AC Power Input

Power Supply : 110~230V AC Terminal Block

Ethernet Port : 4-Port 10/100/1000Base-T RJ45

Fiber Port : 1-Port 100/1000Base-X SFP

Casing : Aluminum Case

Installtions : DIN-Rail & Wall-mount

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Contact Now

Ethernet Switch 4-Port 10/100/1000Base-T + 1-Port 100/1000Base-X SFP AC Power Input

AC Input Fiber Ethernet Switch Advantages
► 4 ports 10/100/1000BASE-T RJ45 with automatic MDI/MDI-X function
► 1 SFP port, 100Base-FX or 1000Base-X dual mode (DIP switch)
► Support traffic control and broadcast storm protection
► Support frames with a maximum size of 10K bytes
► 110~230VAC terminal block power input

4 port Gigabit Ethernet Switch Technical Indexes

Connector	4x RJ45 10/100/1000Base-T
Optical Port	1 x SFP 1000Base-X or 100Base-FX (DIP Switch)
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.1d Spanning Tree
	IEEE 802.1q VLAN TAG
	IEEE 802.1p Qos
Processing Type	Store-and-Forward
Forward Filter Rate	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory	1 Mbit
Max Packet Length	9K Bytes
Address Table Size	4K MAC Addresses
Electrical and Mechanical
Input Power	110~230VAC, 6-pin terminal block
Power Consumption	5W Max.
LED Indicators
PWR	Power Status
L/A	LINK/Activity
SYS	System Status
1000M	1000M Fiber Status
Dimensions (WxDxH)	95 x 95 x 30 mm
Weight	0.26Kg

Industrial Fiber Etherent Switch 4-port 10/100/1000Mbps Overview

The LNK-A1400G-SFP Gigabit Ethernet switch has four 10/100/1000M UTP ports and one 100/1000M SFP socket, which can convert four independent 1000Base-TX twisted pair electrical signals into 1000Base-FX optical signals. It expands the network transmission range from 100 meters on copper wire to 120 kilometers (single mode full duplex mode). Due to the use of the latest integrated circuits and high-quality transceivers, this product has stable performance, excellent quality, and reasonable price. It is suitable for small fiber optic Ethernet. Special AC power input design, supporting 110V~230VAC

Industrial 4-port Gigabit Ethernet Switch Ordering Information

Model	Description
LNK-IMC-A1400G-SFP	Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Power Options	► 110~230VAC Power Supply. Open Wire for Terminal Block

Product Tags:

Aluminum Case Ethernet Switch 4 Port

Ethernet Switch 4 Port Wall Mount

Aluminum Case Ethernet Switch 4 Port 10/100/1000Base-T + 1-Port 100/1000Base-X SFP AC Power Input Wall Mount Images
