Industrial 8-Port PoE+ Gigabit Switch with 2×SFP Fiber Uplinks 30W/Port
Overview
The LNK-IMC208GP is a rugged industrial-grade PoE+ Ethernet switch equipped with 8 Gigabit copper
ports and 2 dual-rate fiber uplinks. Each RJ45 port delivers up to 30W of IEEE 802.3at power, making it
ideal for IP cameras, access points, and IoT devices. Built for reliability, it supports redundant DC power,
wide -40°C to 80°C operation, and DIN-rail mounting—perfect for surveillance, automation, and remote
networking in harsh environments.
Features
High-Power PoE+: 8×Gigabit ports with 30W PoE each (up to 240W total)
Fiber Uplinks: 2×100/1000 FX ports with SFP/SC/FC/ST options
Strong Reliability: Fanless aluminum housing, DIN-rail mount, redundant power
Industrial Design: Wide operating range -40°C to +80°C, MTBF >200,000 hrs
Efficient Networking: Supports jumbo frames (9K), IEEE 802.3az energy saving
Robust Protection: Overload auto-reset, reverse polarity safeguard, EFT/ESD immunity
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 253W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 30W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet(Per Port): | Link/Activity |
| Fiber: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC208GP | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC208GP-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC208GPS-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC208GPF-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC208GP-SFP | Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

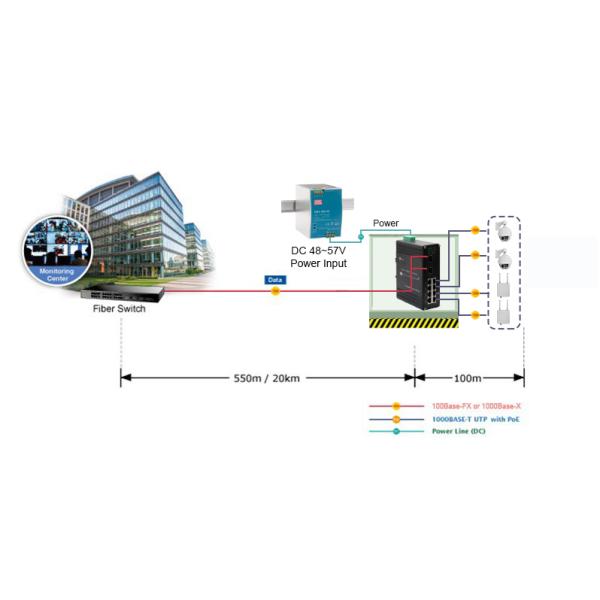

Application
